donut fryers

Electric Fryers

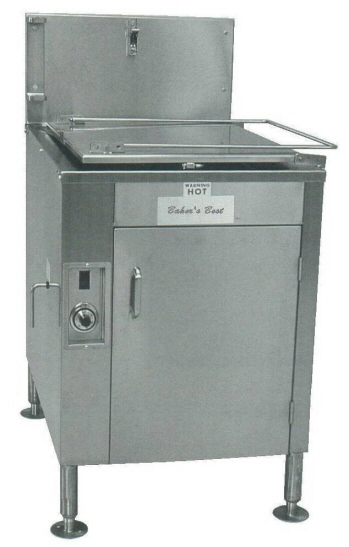

electric donut fryer
-- Heavy Duty Fryer
-- Compact Design
-- Maximum Production in Minimum Space
-- Stainless Steel Construction
-- 12" High Backsplash
-- Heavy Duty Mounting Bracket
-- Ready to Accept Any Donut Dropper
-- Exterior Drain Valve Control, and
-- Bolt Down Legs
Model
Dimensions
Electrical Requirements
Frying Area Oil Capacity
Production Output
Weight
BB20-E
(20 x 20)
26"w x 28"d x 46"h
Tray open 47" wide
208V/1-PH/36Amp
208V/3-PH/21Amp
20" x 20"
80 lbs
60-75 doz/hr
90 sec fry time
200 lbs
BB26-E
(18 x 26)
24"w x 34"d x 46"h
Tray open 43" wide
208V/1-PH/36Amp
208V/3-PH/21Amp
18" x 26"
85 lbs
65-80 doz/hr
90 sec fry time
200 lbs
BB24-E
(24 x 24)
30"w x 32"d x 46"h
Tray open 55" wide
208V/1-PH/73Amp
208V/3-PH/42Amp
24" x 24"
100 lbs
80-100 doz/hr
90 sec fry time
250 lbs
BB34-E
(24 x 34)
40"w x 32"d x 46"h
Tray open 74" wide
208V/1-PH/73Amp
208V/3-PH/42Amp
24" x 34"
195 lbs
130-150 doz/hr
90 sec fry time
320 lbs



Gas Fryers - Standing Pilot

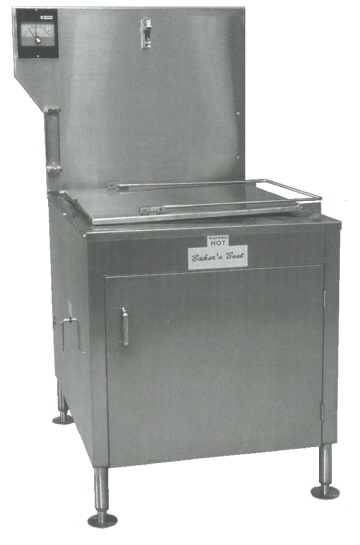

gas donut fryer

-- Stainless Steel Tube Fired Kettle
-- Stainless Steel Cabinet & Door
-- Stainless Steel Full Height Backsplash
-- Stainless Steel Adjustable Drain Tray/Cover
-- Exterior Drain Valve Control
-- Donut Cutter Mounting Bracket
-- Magnetic Millivolt Gas Valve
-- Safety High Limit Cut Out
-- Standing Pilot Ignition
-- No Electrical Power Needed
-- Available in Propane



Model
Dimensions
BTU/HR
Gas Connection
Frying Area Oil Capacity
Production Output
Weight
BB20-G
(20 x 20)
26"w x 28"d x 46"h
Tray open 47" wide
55,000 BTU/HR
1/2" NPT
20" x 20"
80 lbs
60-75 doz/hr
90 sec fry time
300 lbs
BB26-G
(18 x 26)
24"w x 34"d x 46"h
Tray open 43" wide
55,000 BTU/HR
1/2" NPT
18" x 26"
85 lbs
65-80 doz/hr
90 sec fry time
300 lbs
BB24-G
(24 x 24)
30"w x 32"d x 46"h
Tray open 55" wide
80,000 BTU/HR
1/2" NPT
24" x 24"
100 lbs
80-100 doz/hr
90 sec fry time
325 lbs
BB34-G
(24 x 34)
40"w x 32"d x 46"h
Tray open 74" wide
120,000 BTU/HR
1/2" NPT
24" x 34"
195 lbs
130-150 doz/hr
90 sec fry time
400 lbs
